Produce raised tactile graphics in high volumes
The Swell Form Pro is designed to meet the requirements of publishers needing to produce large quantities of tactile graphics quickly.

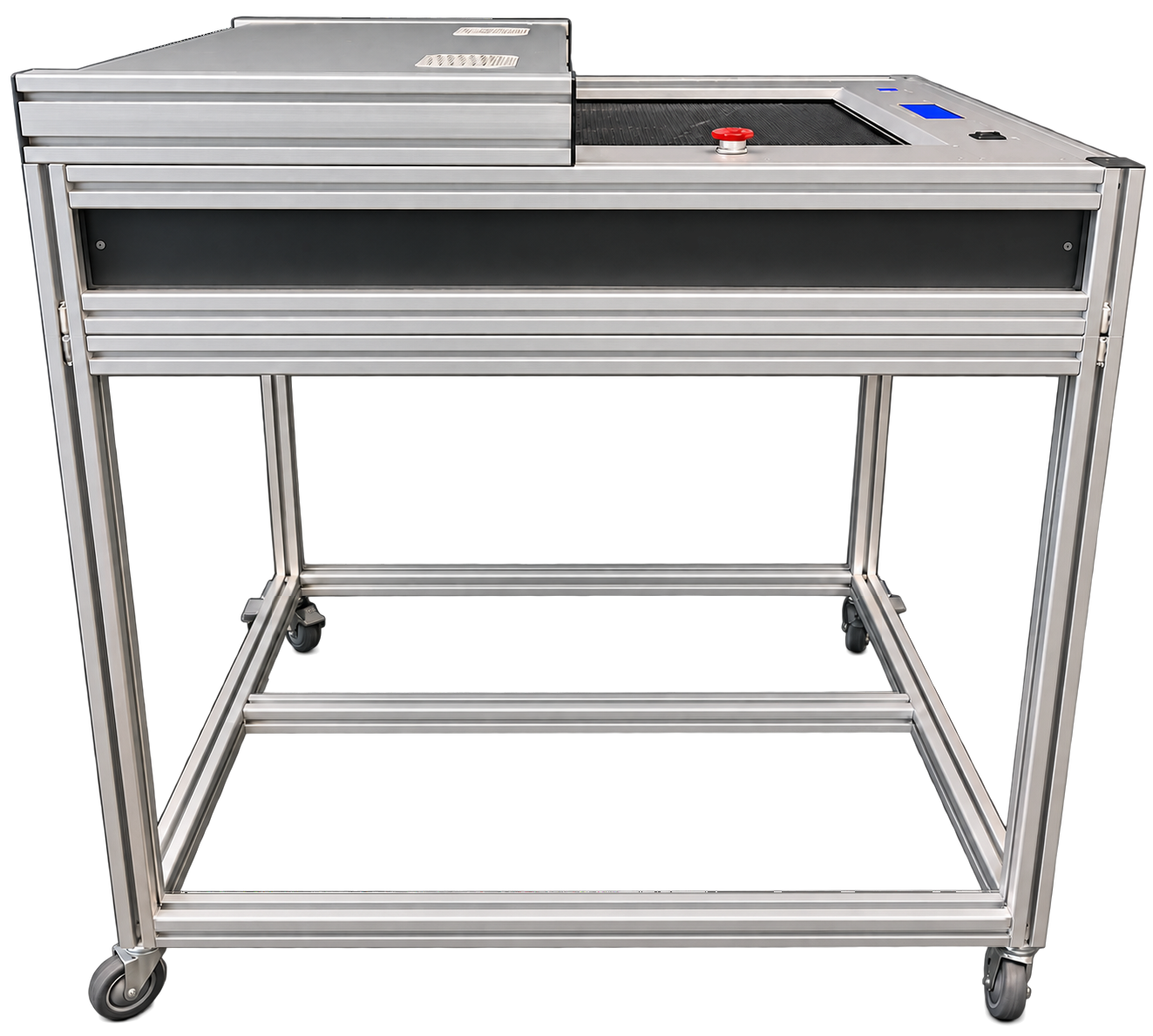

Swell Form Pro Graphics Machine
The Swell Form Pro machine provides a fast, easy, and reliable method for creating tactile maps, diagrams, graphics, and more at production-level speed. It has revolutionized the process of producing superior tactile graphics, enabling output that is both fast and of exceptional quality.
How does it work?
Zychem’s specially developed Swell Touch paper reacts to black ink and heat. When exposed to heat, the black-inked areas swell to produce well-defined tactile features. The finished graphics are durable and reusable. Free pre-made tactile diagrams are available at TactileLibrary.com, or users can create custom graphics using a computer and printer or copier, or draw directly with Swell Touch markers.
Superior tactile graphics faster than ever before

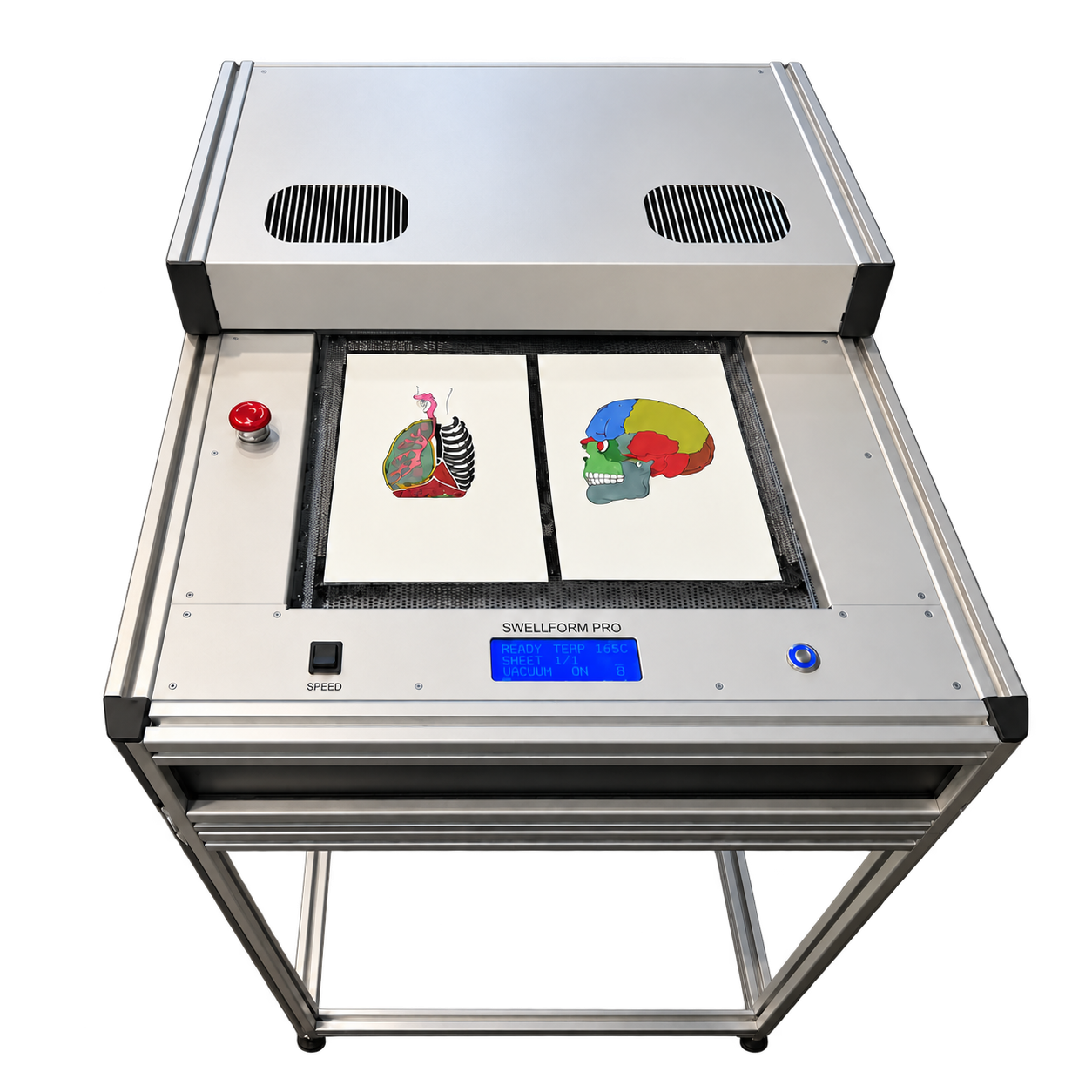

The Swell Form Pro is designed for efficiency and ease of use. Turn on the machine, select your speed setting, and feed the Swell Touch sheets onto the conveyor with the graphic facing up. The machine can process two sheets at a time, and additional sheets can be manually added in sequence. The conveyor passes the sheets under the heating system and deposits completed tactile graphics into the collection tray, ready for use within seconds.
Black elements swell to form tactile features, while colors remain flat, allowing for added visual detail. Users can experiment with textures, patterns, and colors to create engaging and informative tactile graphics.
Built with braille production facilities and publishers in mind
The Swell Form Pro is specifically designed for braille production facilities and publishers that require fast, high-quality tactile graphics. Speed controls help prevent overheating, while heavy-duty fans keep the machine cool and allow for immediate handling of processed sheets. Auto shut-off features ensure proper paper feeding and help prevent jams, maintaining consistent performance during extended use.
See the Swell Form Pro in action
Operating the Swell Form Pro is straightforward, though it differs from the standard Swell Form machine in certain features. A short demonstration video is available to guide new users through setup and show how to begin producing tactile graphics quickly and efficiently.
Swell Form Pro Machine Ordering & Pricing:
To order or request pricing, contact us and we’ll connect you with a local distributor.
Electrical:
- Voltage: 220V – 240V, 50/60 Hz
- Power: 2100W max, 250V fuse
Measurements:
- Height: 38” / 96cm
- Width: 30” / 75cm
- Length: 40” / 100cm
- Weight: 105 pounds / 48kg
Standard Warranty
This product comes with a 3 year warranty on parts
